Air Powered Upper Flange Swing Clamp Cylinder Assembly Fixture Aluminium Alloy Cylinder
Features:
1.The bores of this cylinder are including Φ32-Φ63, the standard swing angle is 90°, and the customizable angle is 0°, 45°, 60°.
2.The total stroke of the swing clamp cylinder is equal to the sum of its swing stroke and clamping stroke.
3.The clamping arm are including single arm and double arm
4.The material of the cylinder is aluminum alloy.
5.When the length of the clamping arm needs to be increased, please do not exceed 1.5 times the original length.
Specification
| Bore of Cylinder (mm) | Φ32 | Φ40 | Φ50 | Φ63 |
| Diameter of Piston | Φ20 | Φ20 | Φ20 | Φ25 |
| Swing stroke (mm) | 14 |
| Clamping stroke | 15 |
| Pressure area pull/push cm² | 4.9/8.04 | 9.43/12.57 | 16.49/19.63 | 28.03/31.17 |
| Theoretical Clamping 5kg/ cm² | 25kgs | 47kgs | 85kgs | 130kgs |
| Fluid | Filtered air |
| Max operation pressure | 10kg/cm² |
| Work Temperature | -10~+60°C |
| Range of pressure (kg/ cm²) | 4-7kg/cm² |
| Rotating direction | clockwise or anticlockwise |
| Rotating angle | Standard angle 90°(±2°),optional angle 0°(±2°), 45°(±2°), 60° (±2°) |
| Acting type | Double acting |
Ordering Code
RAU L 40 x 90° F
1 2 3 4 5
| 1 | Series | RAU(single arm),RAUD(double arms) |
| 2 | Rotating direction | clockwise or anticlockwise |
| 3 | Bore of cylinder | Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm |
| 4 | Rotating angle | Standard angle 90° optional angle 0°, 45°, 60° |
| 5 | with flow control | |

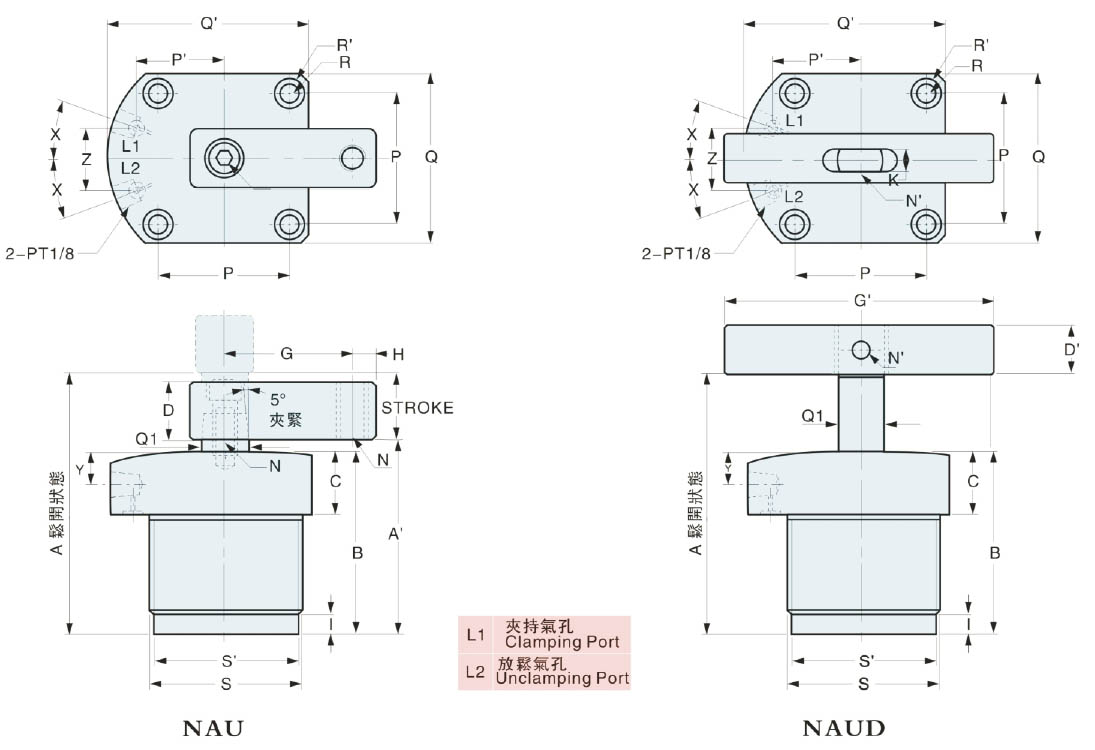

Single Side Swing Clamp Double Side Swing Clamp

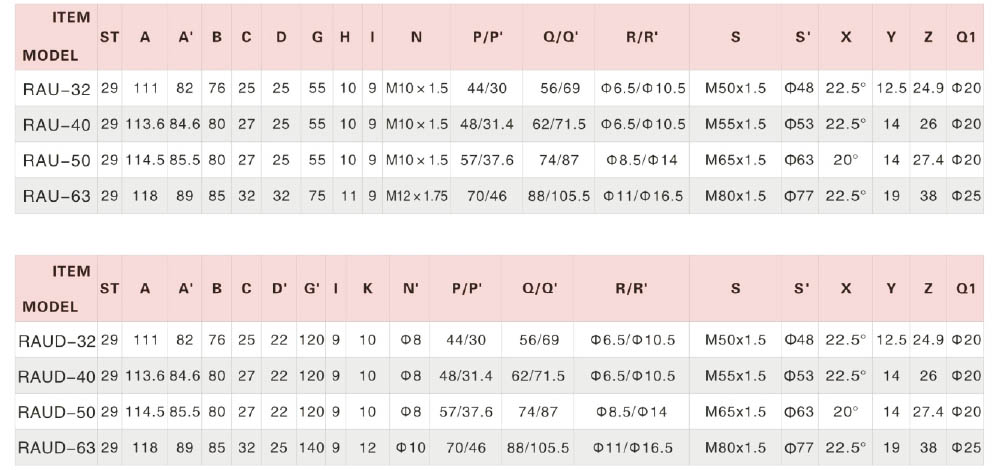

RAU Air Powered Swing Clamp Dimensions
Advantages Air Powered Swing Clamp Cylinder:
1.The first advantage is that the swing clamp greatly reduces the time of clamping and unclamping of workpiece, because the air clamp relies on the air pressure to realize automatic clamping and unclamping of workpiece, the operator only needs the loading and unloading workpiece. According to the actual measurement, the time for automatic and semi-automatic clamping and unclamping of the workpiece is reduced by 90% to 95% compared with the manual fixture.
2.The second advantage is accurate positioning. The repeatability of clamping force ensures accurate positioning and clamping.
3.The third feature is to make full use of the space as high as possible, which improves the space utilization ratio of the fixture. Because the standard air pressure element structure is very compact, which ensures the overall compactness of the clamps, it can be realized that a set of clamping fixture can hold several workpieces at the same time, and at the same time, it can also be controlled according to the designed process to clamp and unclamp multiple workpieces in sequence.
