Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

Name: Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design
Brand: Jiayan
Price: 1 USD

China Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design wholesale

Brand Name : Jiayan

Model Number : PB

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 500 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Aluminium Alloy

Max. operating pressure : 7 kgf/cm2

Min. operating pressure : 4 kgf/cm2

Acting Type : Double acting

Rotating direction : clockwise or anti clockwise

Sensor switch : available

Warranty : 1 year (change new one for free)

Contact Now

Inductive Air Powered Swing Clamp Mechanical Arm Clamp Conveyor Fixture Aluminium Alloy Simple Mounting

Features:

1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length

Specification

Bore of Cylinder (mm)	Φ25 short stroke	Φ25 long stroke	Φ32 short stroke	Φ32 long stroke	Φ40 short stroke	Φ40 long stroke	Φ50 short stroke	Φ50 long stroke
Swing Stroke (mm)	9.5	9.5	15	15	15	15	19	19
Clamping stroke	10	20	10	20	10	20	20	50
Total stroke	9.5	29.5	25	35	25	35	39	69
Diameter of Pison	Φ14		Φ16		Φ16		Φ20
Fluid	Filtered air
Rotating direction	Turn right R or Turn left L
Acting type	Double acting
Theoretical Clamping(5 kg/cm²)	16kgs		30kgs		50kgs		80kgs
Pressure area pull/push cm²cm²	3.37/4.9		6.03/8.03		10.56/12.56		16.48/19.62

Ordering Code

PB--S 4 R

① ② ③ ④

①	Series	PB
②	stroke	Long stroke L Short stroke S
③	Bore of cylinder	Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
④	Rotating angle	clockwise or anti clockwise

Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design

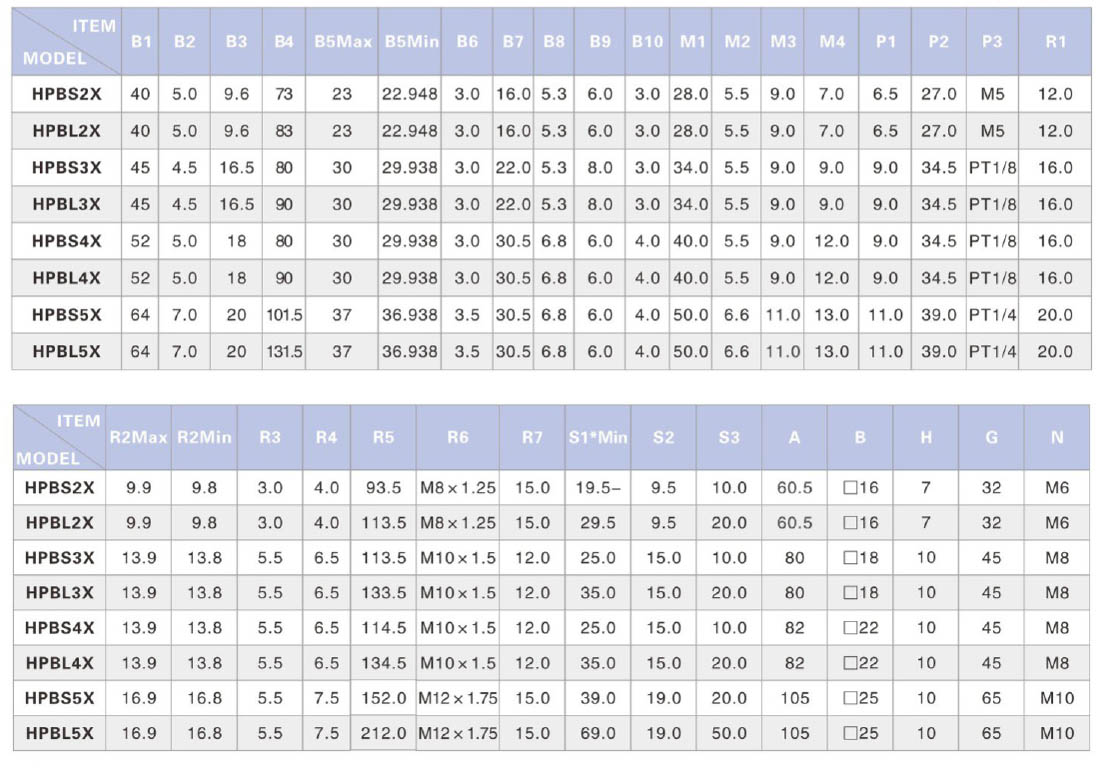

Dimensions of the PB air powered swing clamp

Inductive Air Powered Swing Clamps Aluminium Alloy Simple Mounting Design
