Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture

Brand Name : Jiayan

Model Number : ASR

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set per week

Price : negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2000 set per week

Delivery Time : 7 days

Packaging Details : poly bag and carton

Material : Aluminium Alloy

Structure : Rotary Cylinder

Power : Pneumatic

Maximum Stroke : 20 mm

Shaft Diameter : 10, 20, 30, 50

Fluid : Air

Operating Temperature : 0~60°C

Thread : BSP

Port : M5 M6 1/8

Working pressure : 0-10bar

Contact Now

Pneumatic Swing Clamp Cylinder Rotary Fixture Welding Clamps

Specification

1. ASR Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder
2. Bore size: 25-63mm
3. right and left direction for select.

ASR Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder

Features:
1).Bore:25mm, 32mm, 40mm, 50mm, 63mm
2).Small size and light weight.
3).Long service of life, easy to control and maintain.
4).Interchange with SMC

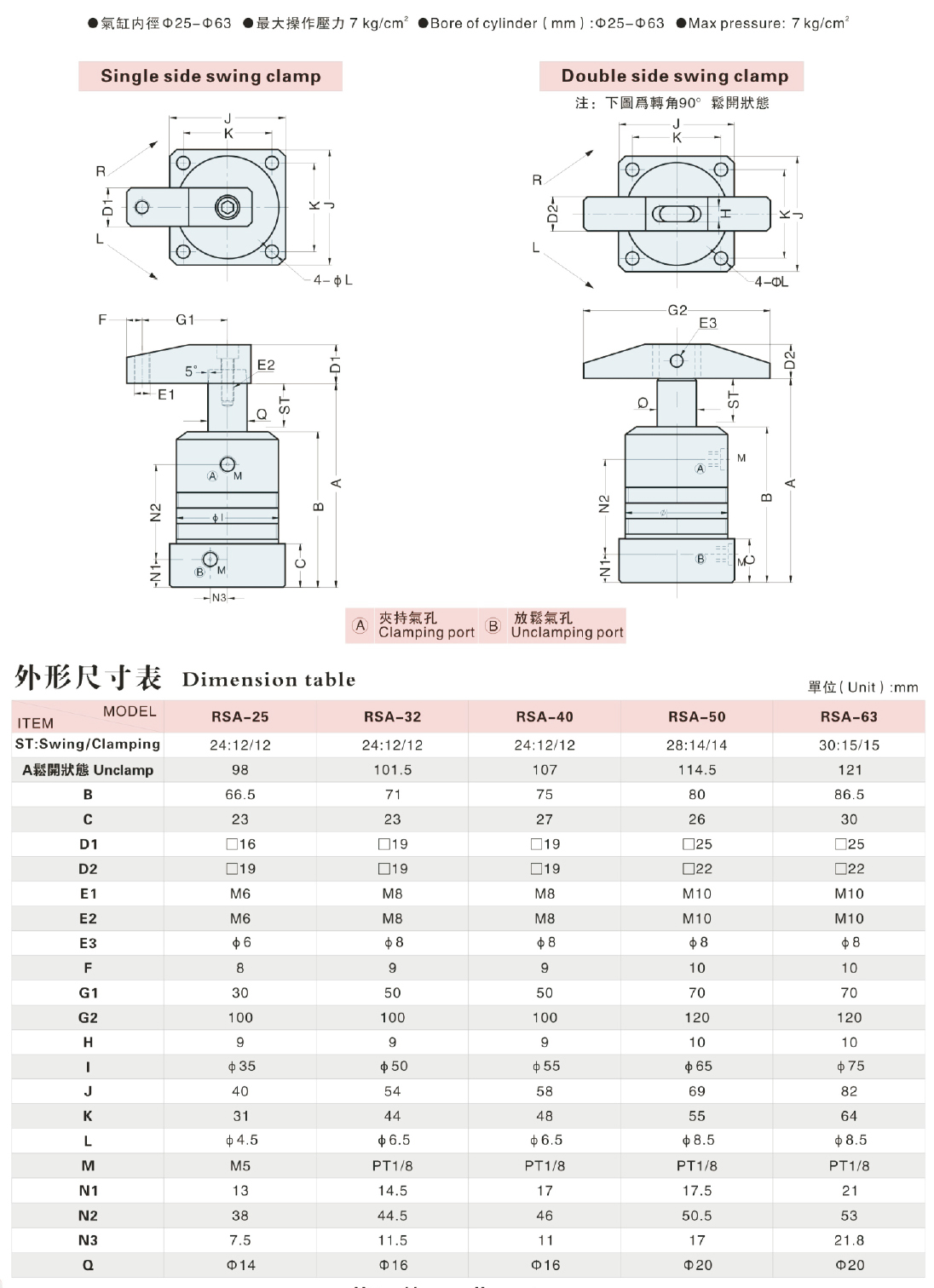

Bore size(mm)	25	32	40	50	63
Fluid	Air(no lubrication)
Working Type	Double acting
Working temperature	0.15~0.95MPa
Working temperature	0~60 degree
Working speed(mm/sec)	30~500
Rotate stroke	11	13		15
Rotate angel	90 degree(can customize 0/45/60 degree
Rotate direction	left(anticlockwise),right(clockwise)
Port size	M5x0.8

Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture
