Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature

Name: Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : RSU

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 500 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Aluminium Alloy

Max. operating pressure : 7 kgf/cm2

Min. operating pressure : 4 kgf/cm2

Acting Type : Double acting

Rotating direction : clockwise or anticlockwise

Max Withstanding Pressure : 10kg/cm2

Warranty : 1 year ( change new for free)

Contact Now

Welding Fixture Upper Flange Air Powered Swing Clamp Simple Mounting Aluminium Alloy Material

Features:

1.This swing clamp maily works as a fixture and all compressed air enters and exits through the flange hole.
2.The air cylinder is made of aluminum alloy and blackened. The heat treatment surface increases the wear resistance.
3.The upper surface of the flange has four screw holes for mounting.
4.Please connect the piston with fixture by round nut
5. When the length of the clamping arm needs to be increased , please do not exceed 1.5 times the original length.

Specifications:

Type	RSU-25	RSU-32	RSU-40	RSU-50	RSU-63
Bore of cylinder	Φ25	Φ32	Φ40	Φ50	Φ63
Dia. of Pistion	Φ14	Φ16	Φ16	Φ20	Φ20
Swing Stroke (mm)	13	16	15	17	15
Clamping Stroke	14	14	15	15	15
Press Area pull/push	3.4/4.91	6.04/8.04	10.56/12.57	16.49/19.63	28.03/31.17
Theoretical Clamping Force 5kg/cm²	16kgs	30kgs	50kgs	85kgs	140kgs
Fluid	Filtered Air
Range of Temperature	-10~+60°C
Max. withstanding pressure	10kg/cm2
Normal Operation Pressure	4-7kg/cm²
Rotating Direction	Turn Right or Turn Left
Rotating Angle	Standard angle90°(±2°),Optinal angle 0°(±2°), 45°(±2°), 60° (±2°)
Acting Type	Double Acting
Mounting Type	Upper Flange

Order Code

RSU L-40x90

1 2 3 4

Series

RSU

Rotating Direction

Turn Right or Turn Left

Bore of cylinder

Φ25,Φ32,Φ40,Φ50,Φ63

Rotating Angle

Standard angle90°(±2°); Optinal angle0°(±2°), 45°(±2°), 60° (±2°)

Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature

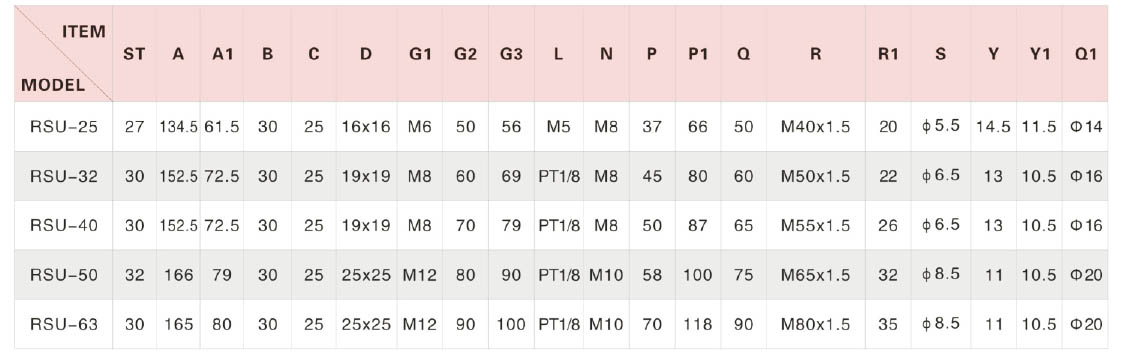

air powered swing clamp dimensions

Upper Flange Air Powered Swing Clamps Welding Fixture Simple Mounting Feature
