Small Air Powered Swing Clamps , Air Rotary Clamp Arm With Dual Clamps

Name: Small Air Powered Swing Clamps Air Rotary Clamp Arm With Dual Clamps
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : FASC

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 1000 set per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Aluminum

Bore of Cylinder : 50

Diameter of Piston : 20

Power : Pneumatic

Structure : Piston Cylinder

Maximum Stroke : 47

Acting Type : Double Acting

Warranty : 1 year

Contact Now

Double Clamping Arm Air Rotary Clamp Casting Engine Cylinder Cover Processing Clamping Fixture

Product Features

1.The product is ideal for mass production on a special purpose machine and jig on machining
center. It will greatly upgrade production efficiency.
2.When the air cylinder actuate, and the piston moves downward, the clamping arm will swing to
a rated angle! Then it lowers until the workpiece is clamped securely.
3.To avoid too fast motion a flow control valve is suggested to connect to the air inlet ports (A, B)
on the swing clamp cylinder. Do not clamp workpiece while the clamp is swinging to avoid
damaging on the cylinder barrel and internal parts.
4.When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the
ariginal length.
5.The cylinder body is manufactured from aluminum alloy. Surface is hard membrane treated for
maximum smoothness on inside surface and long service life.

Specifications

Bore of Cylinder (mm)	Φ25	Φ32	Φ40	Φ50	Φ63
Diameter of Pison	Φ14	Φ16	Φ20	Φ20	Φ20
Press Area pull/push	3.37/4.91	6.03/8.04	10.56/12.57	16.49/19.63	28.03/31.17
Theoretical Clamping Force 5kg/cm²	16	30	50	85	140
Swing Stroke (mm)	9	11		13
Clamping Stroke (mm) std/ extention	13	15/30		17/43
Fluid	Filtered Air
Max Pressure (kg/cm²)	10kg/cm²
Normal Operation Pressure	1--7kg/cm²
Rotating Direction	Turn Right or Turn Left
Rotating Angle	Standard angle 90°,Optinal angle 0°, 45°,60°
Acting Type	Double Acting

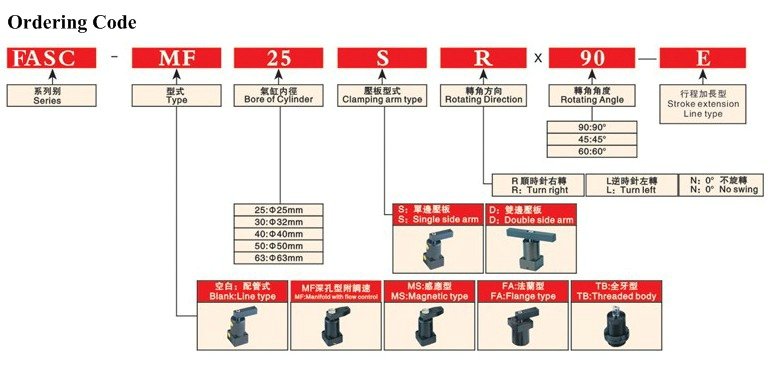

Ordering Code

ASC--MF 25 S R * 90 – E

① ② ③ ④ ⑤ ⑥ ⑦

①	Series Code	Air Swing Clamp Cylinder
②	Type	Blank: Line Type MF: Manifold with flow control MS:Magnetic type FA: Flange type TB:Thread body
③	Bore of Cylinder	25=Φ25mm;32=Φ32mm;40=Φ40mm;50=Φ50mm; 63=Φ63mm
④	Clamping Arm Type	S:Single side arm D:Double side arm
⑤	Rotating Direction	R:Turn right L:Turn left N: 0°No swing
⑥	Rotating Angle	90=90°; 45=45°;60=60°
⑦	Stroke Extention Line Type
