Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty

Name: Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty
Brand: Jiayan
Price: 1 USD

China Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty wholesale

Brand Name : Jiayan

Model Number : SKR20

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 1000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Aluminium Alloy

Power : Pneumatic

Structure : Piston Structure

Rotation Direction : Turn Left Or right

Max Bore : 63mm

Warranty : 1 year

OEM : Yes

Contact Now

Aluminum Alloy Swing Clamp Piston Air Cylinders ISO Certified Fixture

Features:

1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture

2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length

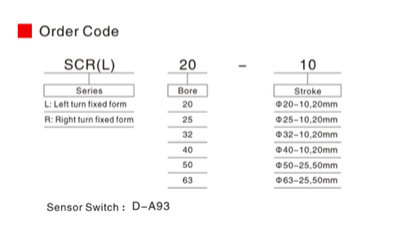

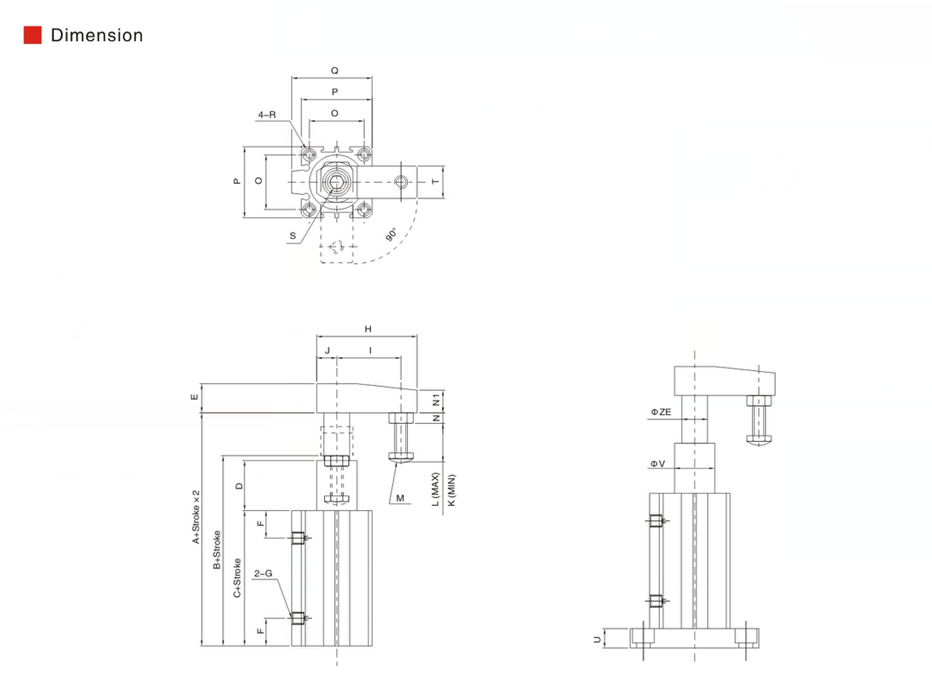

Aluminum Alloy Swing Clamp Cylinder ISO Certification 1 Year Warranty

Bore Size(mm)	A	B	C	D	E	F	G	H	I	J	K	L	M
Φ20	92.3	82.3	59.5	20.3	15.5	7.5	M5x0.8	51	35	9	4	12	M6×1.0×25 Hexagon bolts
Φ25	93.6	83.6	61.2	20	15.5	8	M5x0.8	51	35	9	4	12	M6×1.0×25 Hexagon boltslts
Φ32	113	98	64	31	18.5	9	PT1/8	62.5	40	12.5	5.5	12.5	M8×1.25×40 Hexagon bolts
Φ40	114.8	99.8	66.5	30.3	18.5	10	PT1/8	62.5	40	12.5	5.5	12.5	M8×1.25×40 Hexagon bolts
Φ50	159.9	140.9	78.6	59.6	22	10.8	PT1/4	94	60	20	8	32	M10×1.5×50 Hexagon bolts
Φ63	162.8	143.8	82.5	58.6	22	11	PT1/8	94	60	20	8	32	M10×1.5×50 Hexagon bolts

Bore Size(mm)	N	N1	O	P	Q	R	S	T	U	V	ZE
Φ20	5	12	24	34	-	HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side)	M8x1.25	15.9	8	19	12
Φ25	5	12	28	40	-	HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side)	M8x1.25	15.9	10	24	12
Φ32	6.5	14	34	44	50	HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side)	M10x1.5	19	10	30	16
Φ40	6.5	14	40	52	58	HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side)	M10x1.5	19	12	30	16
Φ50	8	18	48	62	71	HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side)	M12x1.75	25.3	12	39	20
Φ63	8	18	60	75	84.5	HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side)	M12x1.75	25.3	12	50	20
