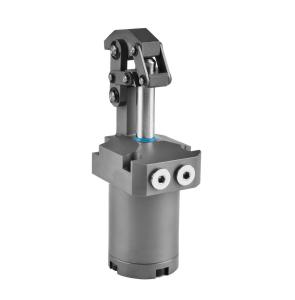

Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body

Name: Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : CLF5H

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 400 sets per week

Delivery Time : 7 days

Packaging Details : inner poly bag and outer carton box

Material : Carbon Steel

Max. operating pressure : 70 kgf/cm2

Min. operating pressure : 10 kgf/cm2

Work Temperature : -10~+70°C

Max Clamping Force : 1136 kgs

Max total stroke : 50 mm

Warranty : 1 year (change new for free)

Contact Now

Flexible Link Clamp Cylinder Friendly Operation Wide Application on Work Fixture Integrally Formed Cylinder Body

Features:

1.For this series of products, the connecting rod mechanism is adopted.

2.During the unclamping situation, the clamping arm can be pulled to a position lower than the clamping surface, which reduces the interference on the loading and unloading of the workpiece, so the operation is convenient,

3.The cylinder body is integrally formed.
4.The movement track of the product is very small, and the clamping position where can't be touched by the traditional swing clamp/link cylinder can be clamped by this type link clamp cylinder, so the influence to the surrounding machinery and equipment can be reduced.

5.Save working space on work fixture.
6.The product is designed with a special dust-proof performance to prevent the penetration of cutting chip and coolant, so it can be used in harsh environments.

Max. operating pressure: 70 kgf/cm2

Min. operating pressure: 10 kgf/cm2

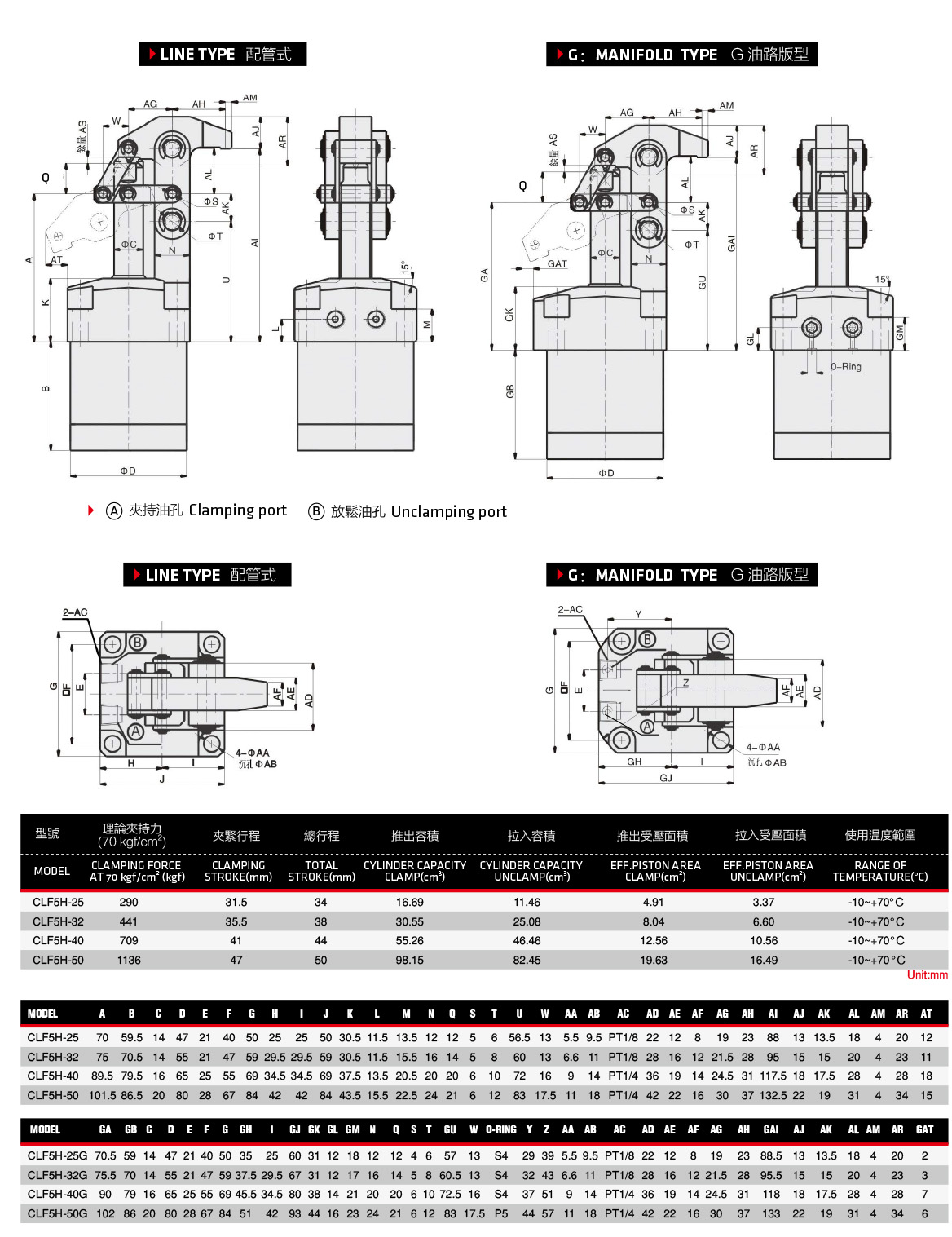

Order Code :

CLF5H – 32 G

CLF5H	Series	CLF5H
32	Bore of Cylinder	Φ 25 , Φ 32 , Φ 40 , Φ 50
G	Piping Type	Blank: line type G: Manifold type

Flexible Link Clamp Cylinder Wide Application Integrated Formed Cylinder Body
