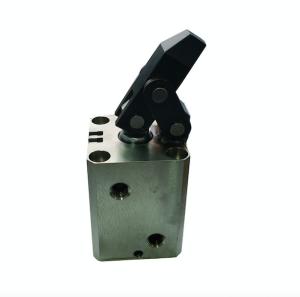

Hydraulic Link Clamp Cylinder Carbon Steel Body Surface Chrome Plated industrial Fixture in Auto manufacture

FEATURES

1.The clamp structure of this model is based on the lever principle: it will be tightened as piston pushing out.
2.The clamping force is stronger than the swing clamp cylinder.

3.The parts are installed outside the cylinder barrel for maintaining easily.
4.The cylinder barrel is made of carbon steel with stable and durable performance.
5.The material of the piston is 45# steel, heat treatment, chrome plated.
Max. operating pressure: 70 kgf/cm2
Min. operating pressure: 10 kgf/cm2
Double acting

NOTE
A flow control valve is recommended

Specification

Bore of Cylinder(mm)	Φ25	Φ32	Φ40	Φ50	Φ63
Dia. of Piston (mm)	Φ18	Φ20	Φ22.4	Φ28	Φ35
Total stroke(mm)	25	25	30	34	40
Pressure area push cm²	4.91	8.04	12.57	19.63	31.17
Theoretical Clamping Force 30 kg/cm²	116kgs	190kgs	288kgs	453kgs	701kgs
Fluid	Filtered oil
Max Pressure	70kg/cm²
Range of pressure	10-50kg/cm²
Acting type	Double acting

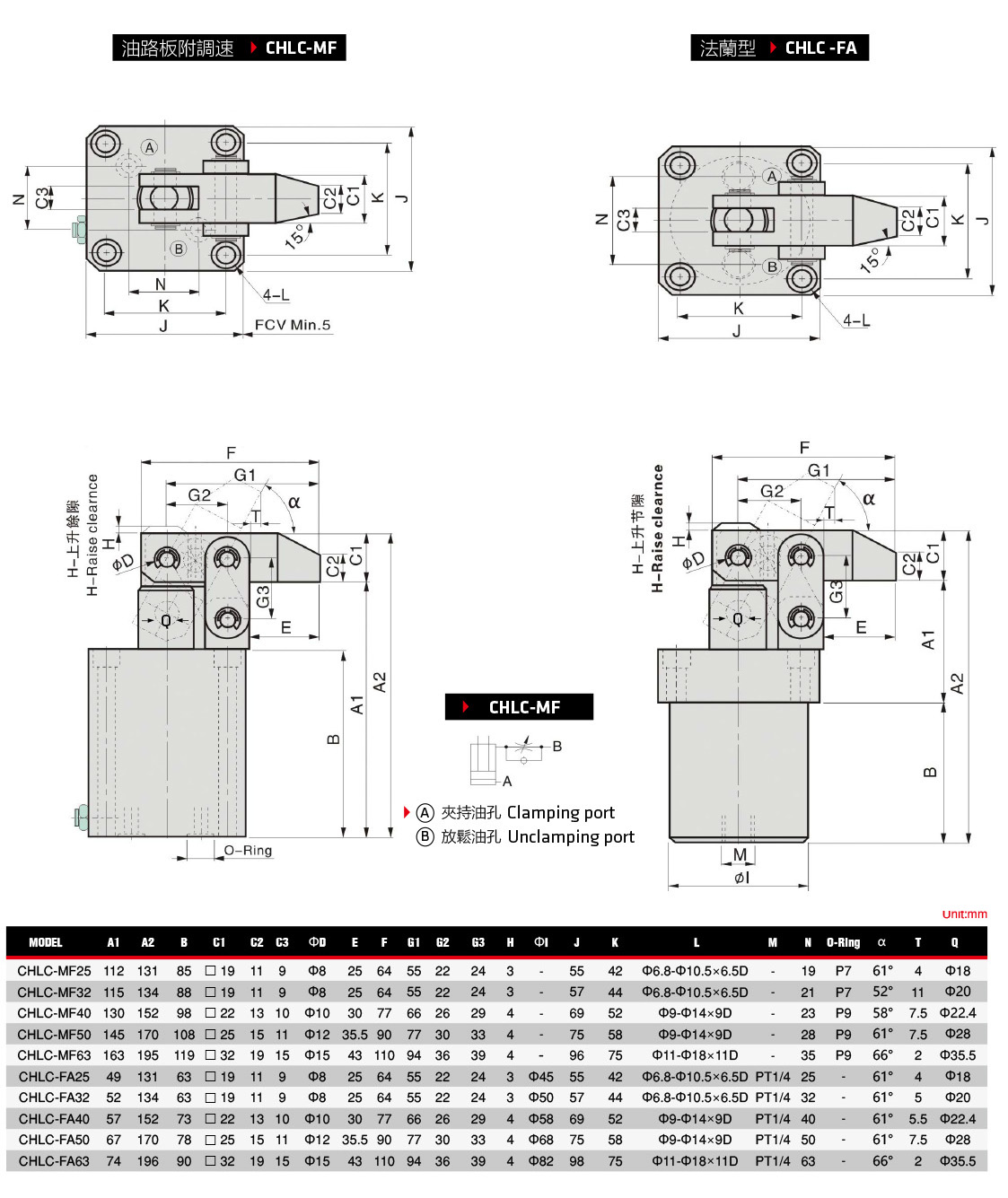

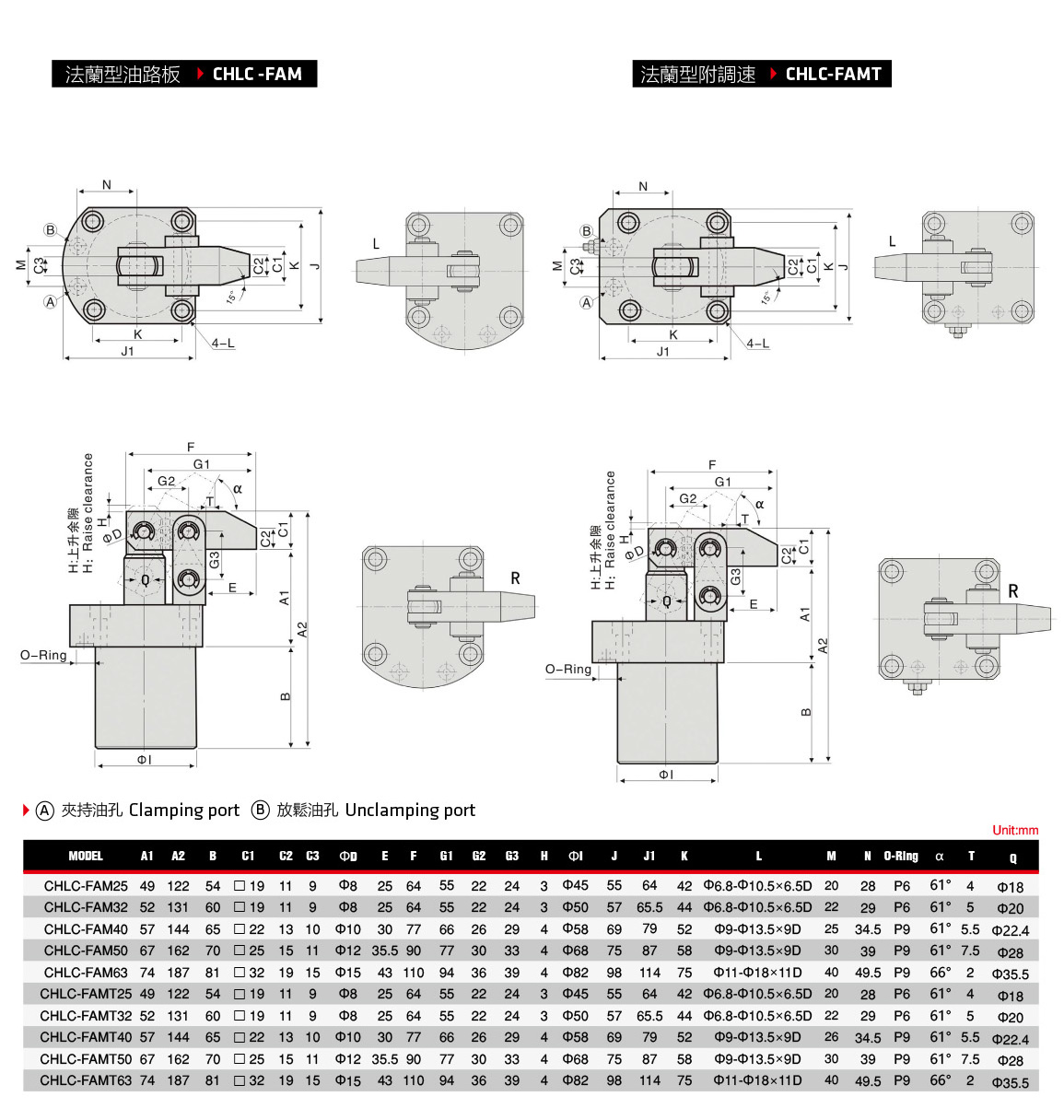

ORDERING INDICATION CHLC – MF 25 R A

CHLC	Series	CHLC

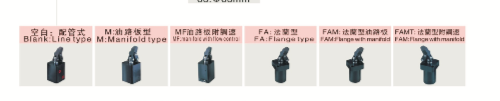

MF	Type	Blank :Line type M: Manifold type MF: Manifold with flow control FA:Flange type FAM:Flange with manifold FAMT: Flange with flow control
25	Bore of Cylinder	25 , 32 , 40 ,50 , 63
R	Lever arm direction	R: right , L: left
A	A integrated
