Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy

1
2
3

China Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy wholesale

China Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy wholesale

China Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy wholesale

Brand Name : Jiayan

Model Number : ALC

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 500 sets

Delivery Time : 8 days

Packaging Details : poly bag and carton box

Material : Aluminium Alloy

Acting Type : double acting

Fluid : filtered air

Max. Operation Pressure : 10kg/cm2

Operation Pressure Range : 1-7kg/cm2

Warranty : 1 year (change new one for free)

Contact Now

Pneumatic Link Clamp Cylinder Mass Production Machine Automatic Clamp Aluminium Alloy

Specifications

cylinder bore mm	25	32	40	50	63
Piston diameter mm	10	12	16	20	30
total stroke mm	20	23	25	30	35
Pressure area cm2	4.91	8.04	12.57	19.63	31.17
clamping force 6kg/cm2	15	25	44	71	136
fluid	filtered air
Max operation pressure	10kg/cm2
operation pressure range	1-7kg/cm2
acting type	double acting

Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy

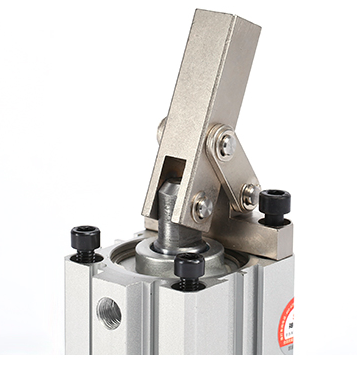

nickel plated surface to resist rust

Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy

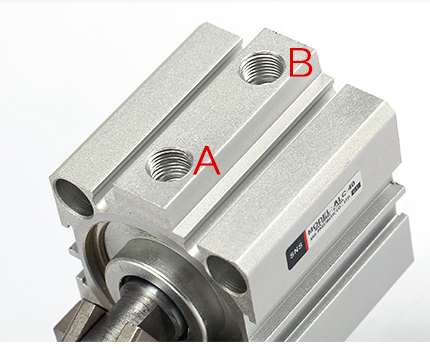

A: Unclamping port

B: clamping port

Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy

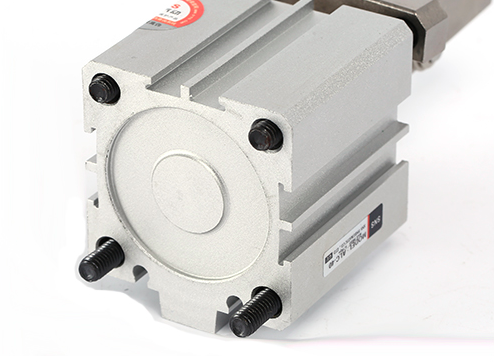

Simple mounting by four screws

Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy

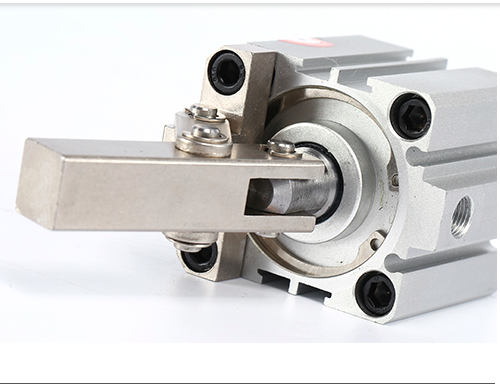

End cover : High tightness

Automatic Link Clamp Cylinder / Pneumatic Link Clamp Aluminium Alloy
