Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface

Product Categories

Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Now

Name: Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : CPLCU

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : inner poly bag and outer carton box

Material : aluminium alloy

Max. operating pressure : 7 kgf/cm2

Min. operating pressure : 3 kgf/cm2

Acting Type : Double acting

Work Temperature : -10~+60°C

Max Clamping Force : 170kgs

Warranty : 1 year (change new for free)

Contact Now

Pneumatic Link Cylinder Long Pressure Maintaining Time Welding Jig Lever Clamp Cylinder Surface Heat-treated

FEATURES

Body material:Aluminum alloy 6061T6 with hard coat.

Piston: S45C, Hard Chromed.

Use high-quality seal to avoid leakage and keep long operation.
Leverage structure design, the fixture can clamp easily, perform efficiently.

Max. operating pressure: 7 kgf/cm2

Min. operating pressure: 3 kgf/cm2

Double acting

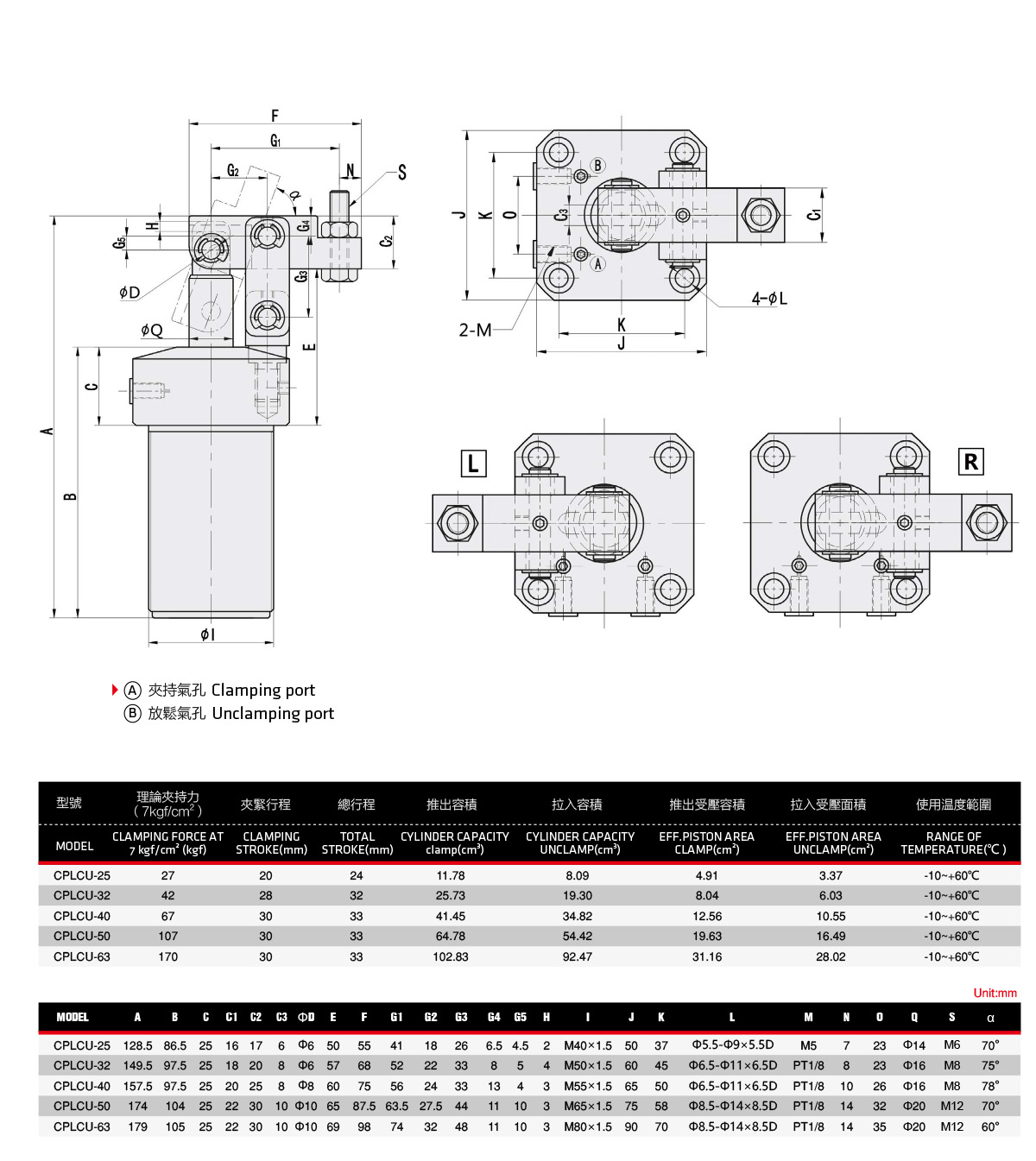

ORDERING INDICATION

CPLCU - 40 R - W

Pneumatic Lever Clamp Long Maintaining Time Welding Jig Heat Treated Surface
