Name: Air Powered Toggle Clamps 36330A Clamping Force 1136kgs Machining Center Fixture
Brand: Jianyan
Price: 1 USD

Brand Name : Jianyan

Model Number : 36330A

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPAL

Supply Ability : 1000 pcs per week

Delivery Time : 7 days

Packaging Details : Poly bag and carton box

Structure : Air cylinder and toggle clamp

Weight : 2570g

Port Size : G1/8''

Plunger Stroke : 30mm

Bore of Cylinder : 40mm

Cylinder Area : 12.56cm2

Max AIR PRESSURE : 10 KG/CM2

Holding Force : 1136kgs

Contact Now

Air Powered Toggle Clamp 36330A Clamping Force 1136kgs Machining Center Fixture

Product Specification and features:

Structure :Air cylinder and toggle clamp

Weight :2570g

Port Size:G1/8''

Plunger Stroke:30mm

Bore of Cylinder:40mm

Cylinder Area:12.56cm2

Max AIR PRESSURE:10 KG/CM2

Holding Force :1136kgs

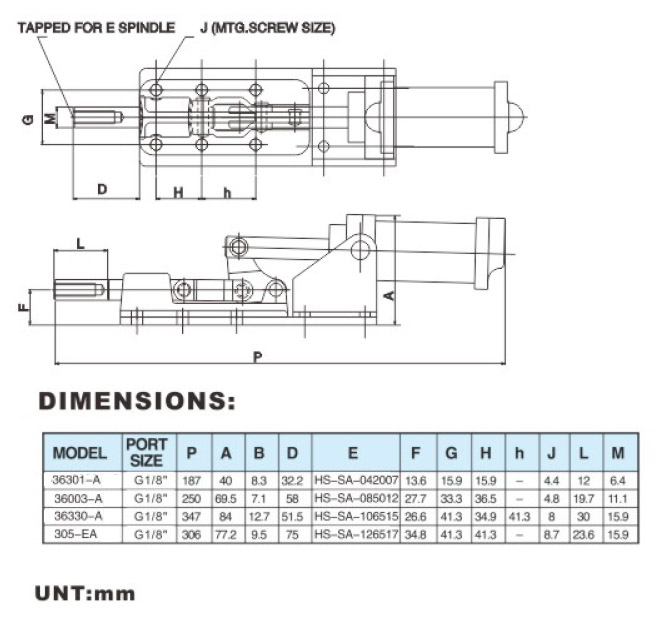

The 15.6mm diameter plunger travels forward 31.8mm form and opem to a closed and locked position.

Plunger is drilled and tapped to accept a M10 p=1.5 spindle or to receive your customized fixture.
