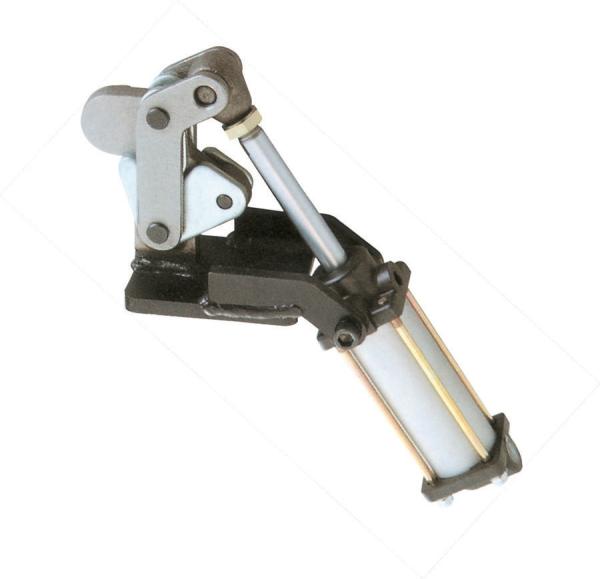

Custom Welding Pneumatic Air Clamps 702DA Holding Force 500kgs OEM Service

Name: Custom Welding Pneumatic Air Clamps 702DA Holding Force 500kgs OEM Service
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : 702DA

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 1000 pcs per week

Delivery Time : 7 days

Packaging Details : Poly bag and carton box

Structure : Air cylinder and weldable clamp

Weight : 3015g

Port Size : G1/8''

Bore of Cylinder : 40mm

Cylinder Area : 12.56cm2

Max air pressure : 10kg/cm2

Max Holding Force : 500kgs

Warranty : 1 year

Contact Now

Heavy Duty Pneumatic Toggle Clamp 702DA Holding Force 500kgs Customized Welding Clamping Arm and Handle

Product Specification and features:

Structure :Air cylinder and weldable clamp

Weight :3015g

Port Size:G1/8''

Bore of Cylinder:40mm

Cylinder Area:12.56cm2

Max air pressure:10kg/cm2

Max Holding Force:500kgs

1.The wedable air clamps open widely for easy loading and unloading of workpiece
2.The user supplies need to weld hold down clamping arm and suitable handle to the clamps.

Series Products: 702-CA, 702-DA and 702-KA

Custom Welding Pneumatic Air Clamps 702DA Holding Force 500kgs OEM Service
