12050 A Pneumatic Toggle Clamp , Pneumatic Hold Down Clamps Destaco 802

Name: 12050 A Pneumatic Toggle Clamp Pneumatic Hold Down Clamps Destaco 802
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : 12050 A

Certification : ISO9001:2008

Place of Origin : Dongguan

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 2000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Structure : air cylinder and toggle clamp

Bar Opens : 92 degree

Weight : 620g

Port Size : G1/8''

Bore of Cylinder : 32mm

Cylinder Piston Area : 7.07cm2

Max Air Pressure : 10kg/cm2

Max Holding Capacity : 91kgs

Contact Now

Air Powered Clamp Pneumatic Hold Down Clamp 12050 A with Port Size G1/8" Destaco 802 Holding Force 91kgs

Product Specification :

Structure:air cylinder and toggle clamp

Bar Opens:92 degree

Weight :620g

Port Size :G1/8''

Bore of Cylinder:32mm

Cylinder Piston Area:7.07cm2

Max Air Pressure:10kg/cm2

Max Holding Capacity:91kgs

Product features:

1.Air Powered Clamps (Destaco 802)
2.Great for machine operation, welding, mould, electronic equipment assembly, etc field
3.Material : Metal, Plastic; Package : 1 x Toggle Clamp
4.HOLDING CAPACITY 200.2Ibs
5.with port size G1/8"

12050 A Pneumatic Toggle Clamp , Pneumatic Hold Down Clamps Destaco 802

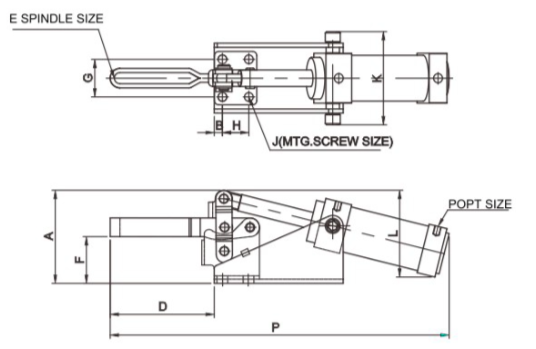

P:170 ;A:57;D:35;E:FC-10138;F:25.7;G:27;H:12.7;J:5.2;K:69;L:51
