Name: Heavy Duty Toggle Clamps 30600 31200 32500 35000 Ductile Iron Base OEM Service
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : 30600,31200 and 32500

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C, Western Union, , T/T,PayPal

Supply Ability : 500 pcs per week

Delivery Time : 7 days

Packaging Details : Plastic bag and carton box

Material : Ductile Iron Base and Handle

Weight : 570-6500g

Holding Capacity : 600-5000kgs

Handle Opens : 185 degree

Plunger Stroke : 32-100mm

Mounting Hole Diameter : 5.5-10.3mm

Contact Now

Heavy Duty Push Pull Toggle Clamp 30600,31200 ,32500 and 35000 Ductile Iron Base and Handle Max Clamping Force 5000kgs

Product Specification and features:

Material:Ductile Iron Base and Handle

Weight :570-6500g

Holding Capacity :600-5000kgs

Handle Opens:185 degree

Plunger Stroke:32-100mm

Mounting Hole Diameter:5.5-10.3mm

Hardened pivot for long life span

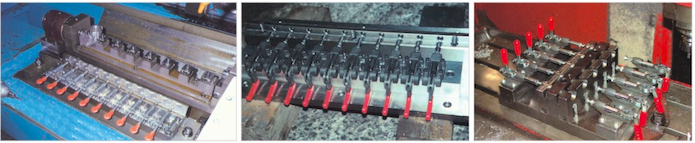

Application: engineering machinery ,machining center and heavy duty machines manufacture fixture

Heavy Duty Toggle Clamps 30600 31200 32500 35000 Ductile Iron Base OEM Service

Product Tags:

push pull action toggle clamps
