50kgs Low Profile Toggle Clamp 36070 Stroke 10mm Zinc Plated Surface Jig

Brand Name : dls

Model Number : 36070

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 4000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Cold Roll Sheet

WEIGHT : 97g

HOLDING CAPACITY : 50kg

SPINDLE SUPPLIED : M5x16

HANDLE OPENS : 66 degree

PLUNGER STROKE : 10mm

Contact Now

Push Pull Toggle Clamp 36070 Clamping Force 50kgs Stroke 10mm Zinc plated Surface Ji

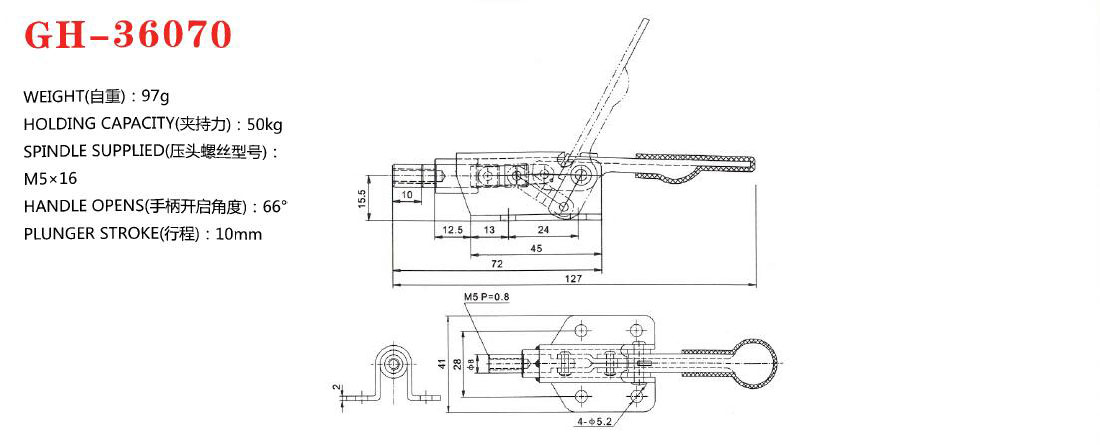

Product Specification and features:

WEIGHT : 97g
HOLDING CAPACITY : 50kg

SPINDLE SUPPLIED : M5x16
HANDLE OPENS: 66.

PLUNGER STROKE: 10mm

Sheet metal steel, zinc plated; Red vinyl hand grip
Ground and oiled plunger shaft
Handle moves 66°
Reversed action is safer to use
Good for multiple small parts fixturing, such as in CNC machine fixtures

50kgs Low Profile Toggle Clamp 36070 Stroke 10mm Zinc Plated Surface Jig

Product Tags:

push pull action toggle clamps

push pull type toggle clamp

50kgs Low Profile Toggle Clamp 36070 Stroke 10mm Zinc Plated Surface Jig Images
