36224 Push Pull Toggle Clamp External Thread Mounting Destaco 624M

Brand Name : dls

Model Number : 36224

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 2000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Sheet metal steel

Weight : 755g

Holding Capacity : 318kgs

Stroke : 65.5mm

Contact Now

External Thread Mounting Push Pull Toggle Clamp 36224 Holding Force 318kgs Destaco 624M

Product Specification and features:

Material :Sheet metal steel

Weight :755g

Holding Capacity:318kgs

Stroke:65.5mm

Series Products:36202, 36204 and 36224

Mounting Bracket: Optional

Toggle clamp: Sheet metal steel
Zinc plated
Hand grip: Red vinyl
Ground and oiled plunger shaft
Thin lock nuts
Jam nut on the work side included
Zinc plated steel hex head threaded spindle included

36224 Push Pull Toggle Clamp External Thread Mounting Destaco 624M

Product Tags:

woodworking toggle clamps

push pull type toggle clamp

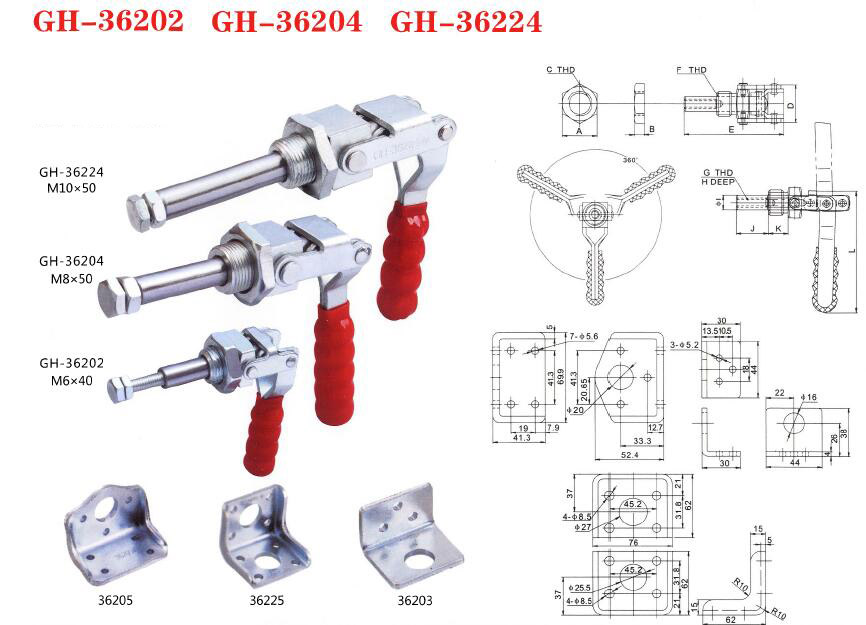

36224 Push Pull Toggle Clamp External Thread Mounting Destaco 624M Images
