Carbon Steel Hydraulic Swing Clamp , Patented Swing Cylinder Clamps Pascal Type

Product Categories

Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Now

Name: Carbon Steel Hydraulic Swing Clamp Patented Swing Cylinder Clamps Pascal Type
Brand: Jiayan
Price: 1 USD

Brand Name : Jiayan

Model Number : RBTU

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : inner poly bag and outer carton box

Material : Carbon Steel

Operation Pressure : 1-7Mpa

Max Withstanding Voltage : 10.5Mpa

Work Temperature : -10~+70°C

Fluid : hydraulic oil ISO-VG32

Max Stroke : 36mm

Max Swing Torque : 9.3N.m

Warranty : 1 year (change for free)

Contact Now

Patented Swing Clamp New Design Long Life Span at least 100 Million Circle Clamping Force 90KN Dust-proof Design

Carbon Steel Hydraulic Swing Clamp , Patented Swing Cylinder Clamps Pascal Type

Features:

1. Adopt special antidust design to guarantee high leakproofness and use corrosion-resistant and dustproof material to tackle cooling liquid

2. Streamlined pisition rod and V-groove S rod design to guarantee stablity and high precision

3. V groove is idea for high speed motion

4. Tapered body to prevent the pile of cooling liquid and metal filing

5. big diameter steel ball to reduce resistance

6. Patented design. Compared with traditional swing clamp, the clamping force of this swing clamp increase by 25%

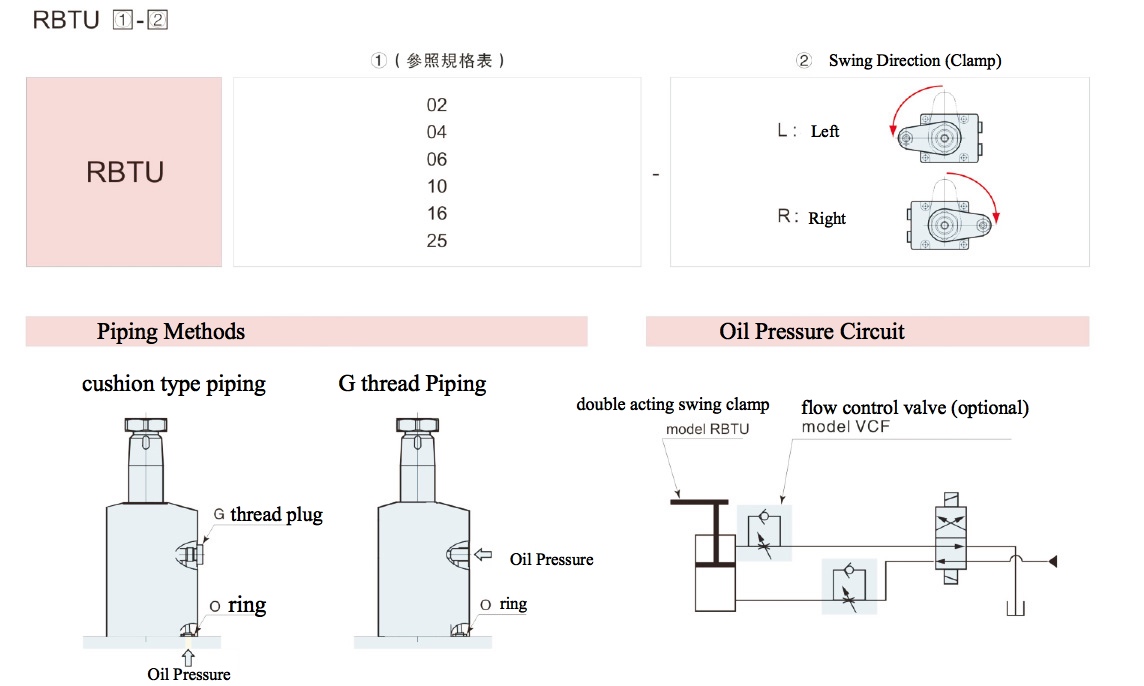

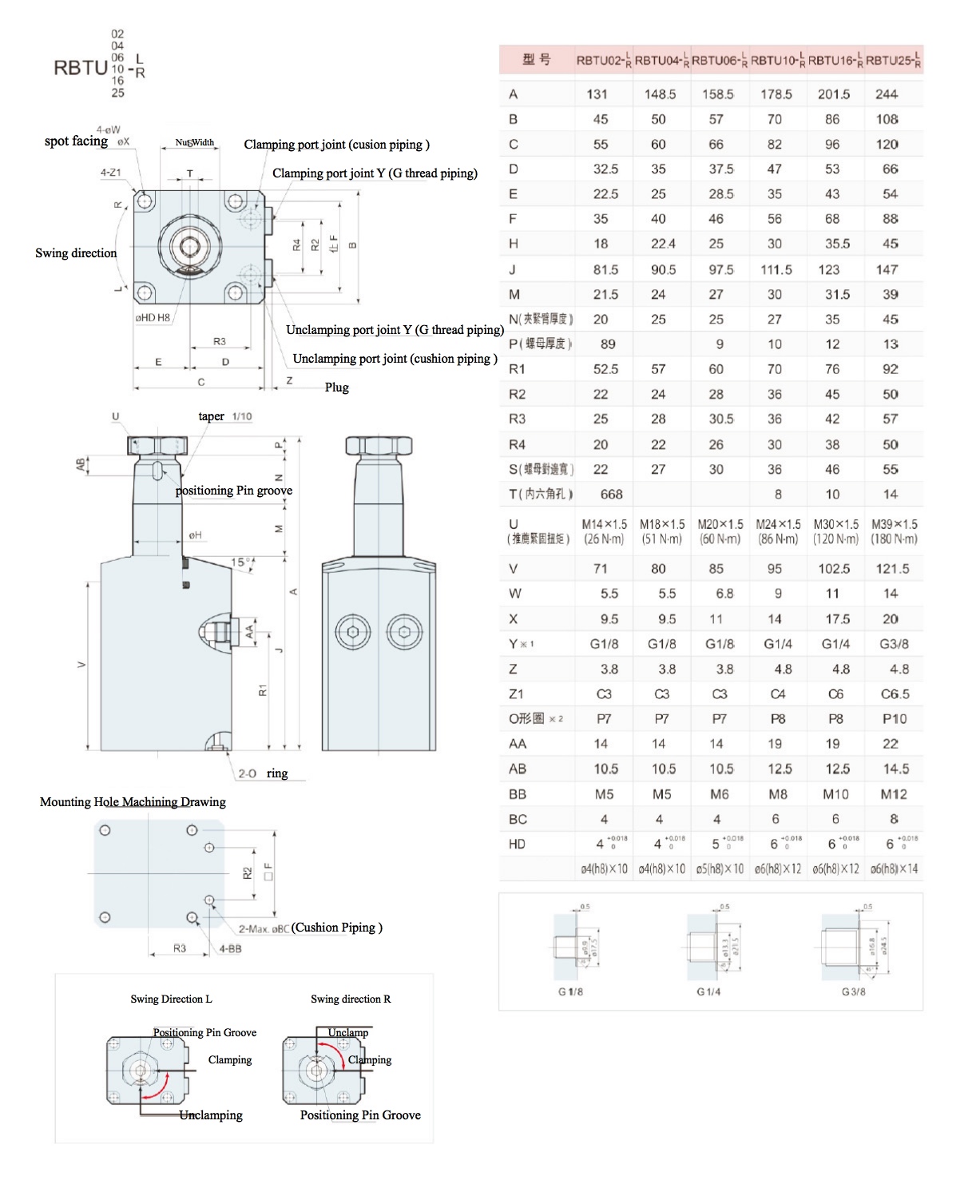

Specifications

Model		RBTU02	RBTU04	RBTU06	RBTU10	RBTU16	RBTU25
Cylinder Force (Under oil pressure 7Mpa) (kN)		2.8	4.4	6.3	9.9	16.3	25.8
Clamping Force	Under oil pressure 7Mpa (kN)	2.4	3.8	5.3	8.3	13.5	21.2
Clamping Force	Clamping arm Length (mm)	35	40	50	60	70	90
Bore of cylinder (mm)		29	36	42	52	65	82
Dia. of Piston Rod (mm)		18	22.4	25	30	35.5	45
Piston Area (cm2)		4.1	6.2	8.9	14.2	23.3	36.9
Swing Angle		90 Degree +/-3 Degree
Positioning Pin Groove Precision		+/- 1 degree
Repeating Clamping precision		+/-0.5 degree
Total stroke (mm)		18	20.5	23.5	26.5	28.5	36
Swing stroke (mm)		10	12.5	13.5	16.5	18.5	23
Clamping stroke (mm)		8	8	10	10	10	13
Max Swing Torque (N.m)		0.7	1.6	1.8	3.4	5.6	9.3
Cylinder Capacity	Clamp (cm3)	7.3	12.8	21.0	37.5	66.4	132.9
Cylinder Capacity	Unclamp (cm3)	11.9	20.9	32.6	56.3	94.6	190.1
Weight (kg)		1.4	1.9	2.6	4.4	6.9	12.9

Carbon Steel Hydraulic Swing Clamp , Patented Swing Cylinder Clamps Pascal Type

Product Tags:

hydraulic workholding clamping fixture
