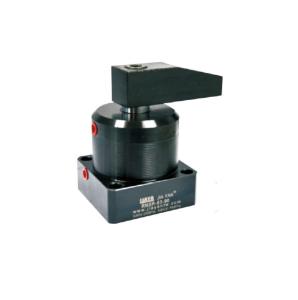

Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface

Name: Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface
Brand: Jiayan
Price: 1 USD

China Forceful Hydraulic Swing Clamp Multiple Bores Black Oxide Finish Surface wholesale

Brand Name : Jiayan

Model Number : RNS/RNTS

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per week

Delivery Time : 7 days

Packaging Details : inner poly bag outer carton box

Material : High Strength Carbon Steel

Max. operating pressure : 45 kgf/cm2

Min. operating pressure : 20 kgf/cm2

Acting Type : double acting

Mounting Type : Flange

Rotating Direction : clockwise or anticlockwise

Max Clamping force : 600kgs

Warranty : 1 year (change for free)

Contact Now

High Clamping Force Hydraulic Swing Clamp multiple bores of the Cylinder Black Oxide Finish on Surface Carbon Steel

Product Introduction

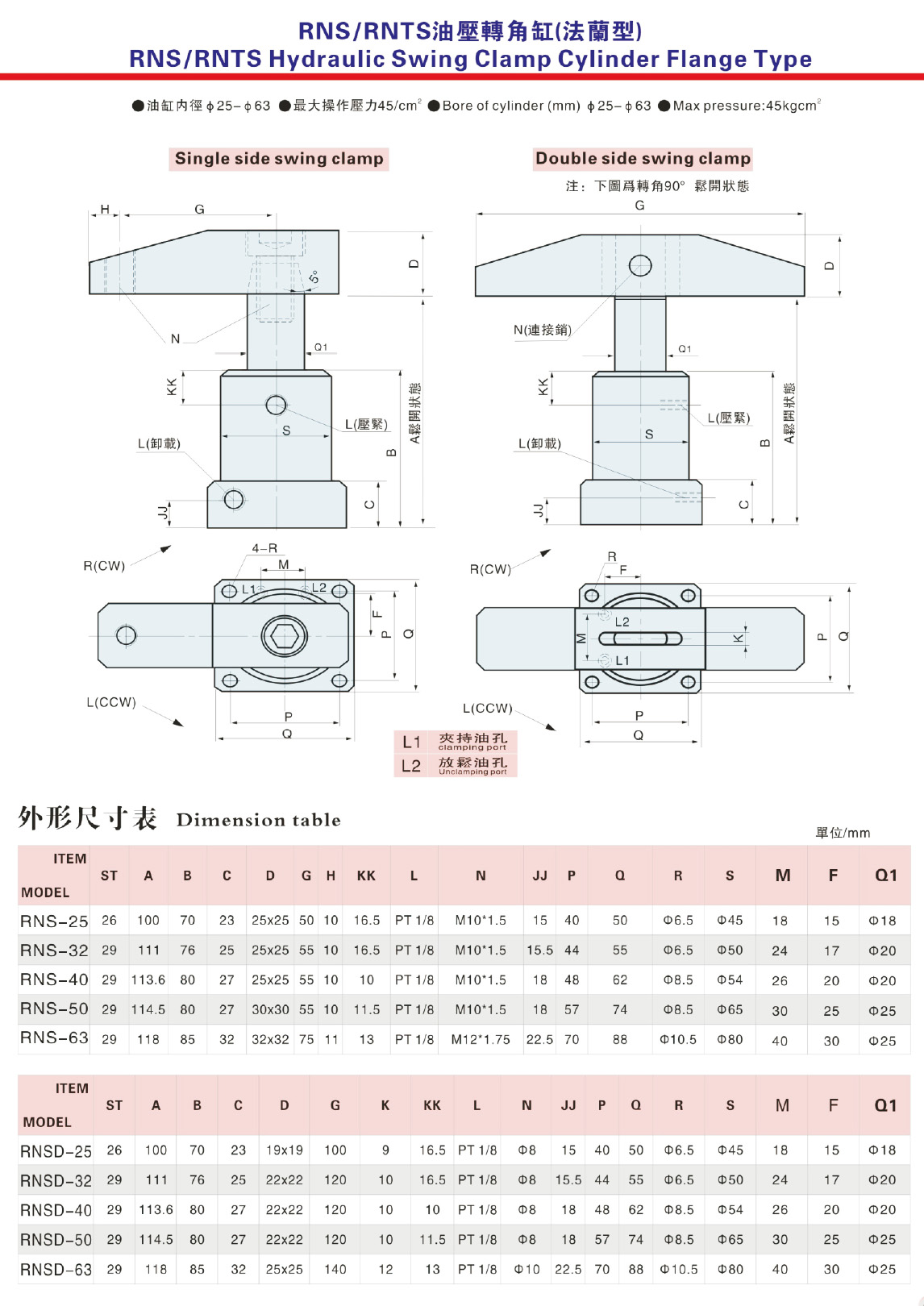

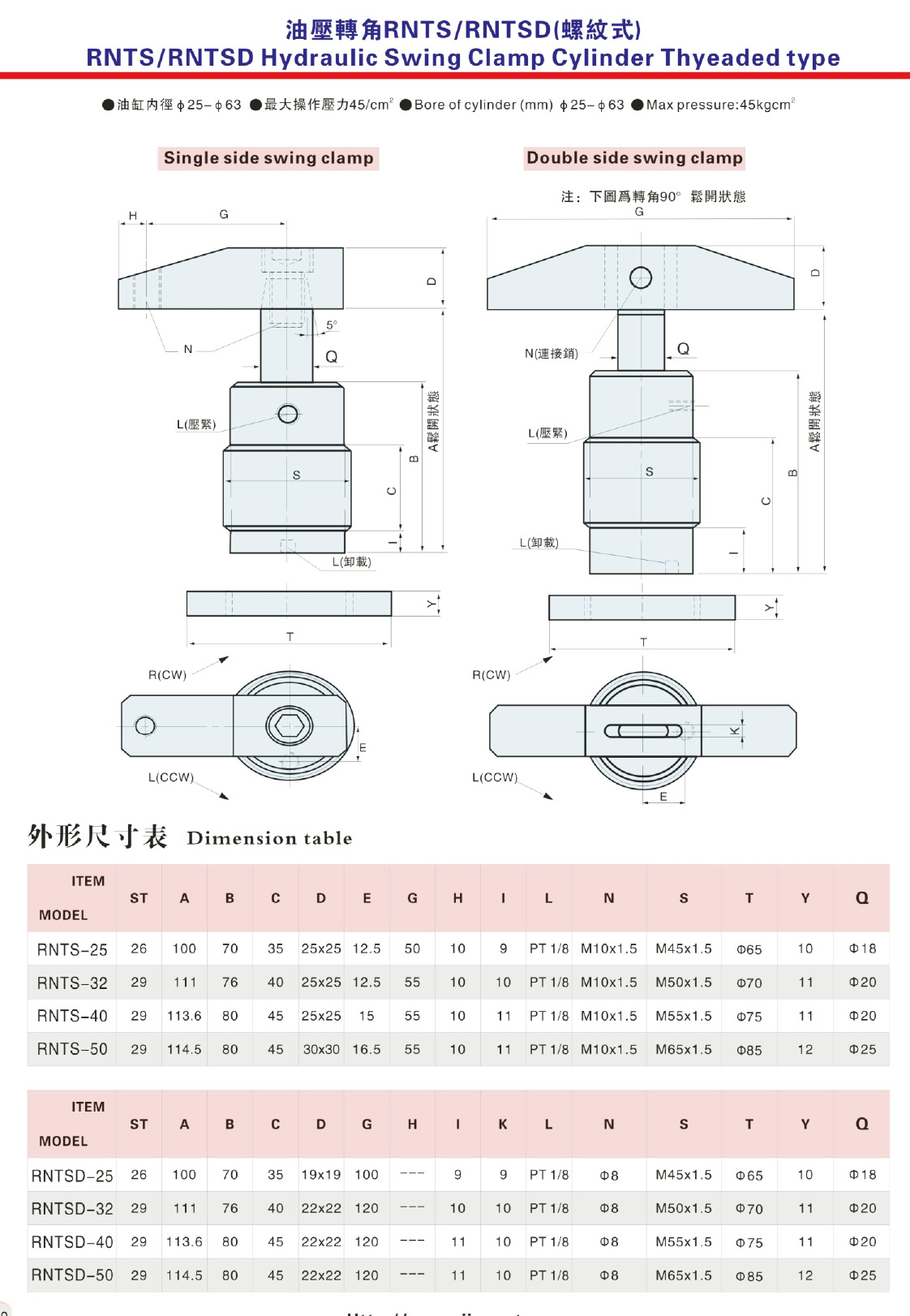

1. The bores of this series of cylinder are including Φ25,Φ32,Φ40,Φ50 and Φ63 and the rotating angles are including 0°,45°,60°,90°and 180°.

2. This series of hydraulic swing clamps are applied under the situation that large clamping force is needed and used to clamp the large work piece. It is widely used in mass production and it features high automation.

3. The cylinder body is made of carbon steel.

Specification

Type of cylinder (mm)	RNS-25	RNS-32	RNS-40	RNS-50	RNS-63
	RNSD-25	RNSD-32	RNSD-40	RNSD-50	RNSD-63
	RNTS-25	RNTS-32	RNTS-40	RNTS-50	RNTS-63
	RNTSD-25	RNTSD-32	RNTSD-40	RNTSD-50	RNTSD-63
Swing stroke(mm)	12	14
Clamping stroke(mm)	14	15
Fluid	Filtered oil
Max pressure (kg/cm²)	70kgs/cm²
Normal operation pressure (kg/cm²)	20-45kgs/cm²
Rotating direction	Turn Right or Turn Left
Rotating angle	Standard angle 90°,Optional angle 0°,45°, 60°, 180°
Acting type	Double Acting
Fixing type	Flange
Bore of piston	Φ18	Φ20	Φ20	Φ20	Φ25
Press Area pull/push (cm²) cm²	2.36/4.9	4.89/8.03	9.42/12.56	16.48/19.62	26.25/31.15
Theoretical Clamping Force (25 kg/cm²)	59kgs	120kgs	200kgs	400kgs	600kgs

Ordering Coder

RNS L-- 40°x 90° G

① ② ③ ④ ⑤

①	Series	RNS, RNSD, RNTS, RNTSD
②	Rotating direction	Turn Right or Turn Left
③	Bore of cylinder	Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm Note:Φ63mm is not available for RNTS, RNTSD Series
④	Rotating angle	Standard angle 90°；Optional angle 0°, 45°, 60°, 180°
⑤	G:manifold
