295kgs Quick Release Toggle Clamp 30290M Plunger Stroke 23mm Extended Position

Product Categories

Dongguan Jiazheng Hydraulic Technology Co, LTD

Contact Now

Brand Name : dls

Model Number : 30290M

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 3000 pcs per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Material : Cold Roll Sheet

WEIGHT : 1270g

HOLDING CAPACITY : 295kg

HANDLE OPENS : 45 degree

PLUNGER STROKE : 23mm

Warranty : 1 year

Contact Now

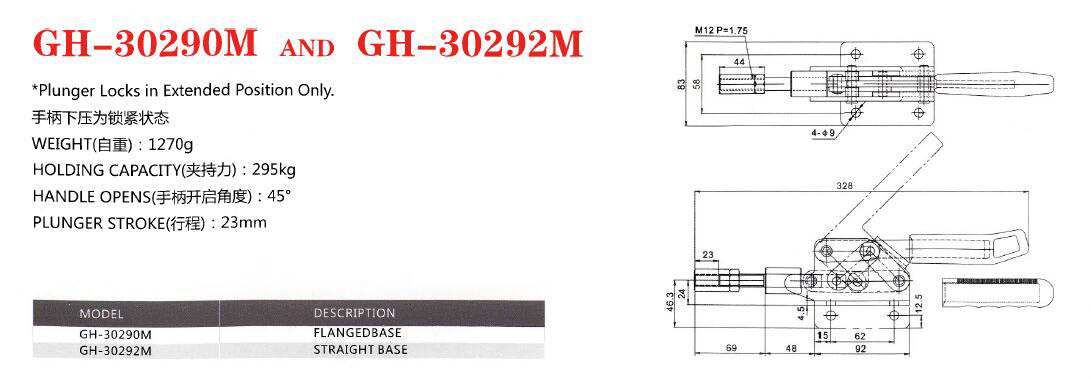

Quick Release Toggle Clamp 30290M Holding Capacity 295kgs Plunger Stroke 23mm Extended Position For Locking

Product Specification and features:

Plunger Locks in Extended Position Only.
WEIGHT : 1270g
HOLDING CAPACITY: 295kg

HANDLE OPENS : 45 degree

PLUNGER STROKE: 23mm

Flanged Base

Other Series Product 30292m is straight base

295kgs Quick Release Toggle Clamp 30290M Plunger Stroke 23mm Extended Position
