20kg Horizontal Quick Release Toggle Clamp 20400 Cold Roll Sheet Fixture

Brand Name : dls

Model Number : 20400

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T,Paypal

Supply Ability : 4000 pcs per week

Delivery Time : 7 days

Packaging Details : plastic bag and carton box

Material : Cold Roll Sheet

WEIGHT : 32.6g

HOLDING CAPACITY : 20kg

SPINDLE SUPPLIED : M4x27

BAR OPENS : 55 degree

HANDLE OPENS : 60 degree

Contact Now

Horizontal Quick Release Toggle Clamp 20400 Clamping Force 20kg Cold Roll Sheet Fixture

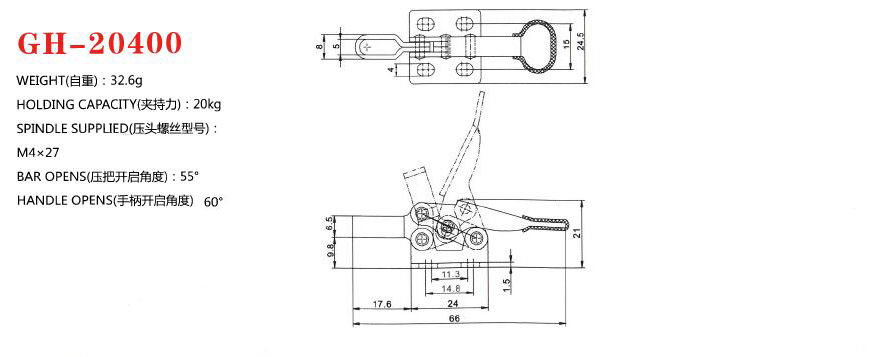

Product Specification and features:

WEIGHT : 32.6g
HOLDING CAPACITY: 20kg

SPINDLE SUPPLIED: M4x27
BAR OPENS: 55 degree

HANDLE OPENS: 60 degree

1.U shaped bar, flanged base. with soft plastic cap spindle.

2.Most suitable for quickly holding down sheet metal or circuit boards, for machine operation, welding, mold, electronic equipment assembly, etc. field.

3.During clamping, the lever is controlled to prevent impact on functioning due to side thrust.

4.Plastic cover handle for easy, safe and comfortable operation.

20kg Horizontal Quick Release Toggle Clamp 20400 Cold Roll Sheet Fixture
