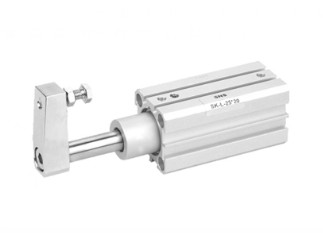

Enerpac Aluminum Alloy Swing Clamp Piston Air Cylinders Automatic Clamp

Brand Name : Jiayan

Model Number : SNS

Certification : ISO9001

Place of Origin : Dongguan China

Material : Aluminium Alloy

Min Bore Size : Φ20

Max Bore Size : Φ63

Port Size : PT1/8 ,PT1/4,M5x0.8

Mounting Size : HoleΦ6.8

Sensor Switch : yes

Contact Now

Enerpac Aluminum Alloy Swing Clamp Piston Air Cylinders Automatic Clamp

Enerpac Aluminum Alloy Swing Clamp Piston Air Cylinders Automatic Clamp

Bore Size(mm) A B C D E F G H I J K L M
Φ20 92.3 82.3 59.5 20.3 15.5 7.5 M5x0.8 51 35 9 4 12 M6×1.0×25 Hexagon bolts
Φ25 93.6 83.6 61.2 20 15.5 8 M5x0.8 51 35 9 4 12 M6×1.0×25 Hexagon boltslts
Φ32 113 98 64 31 18.5 9 PT1/8 62.5 40 12.5 5.5 12.5 M8×1.25×40 Hexagon bolts
Φ40 114.8 99.8 66.5 30.3 18.5 10 PT1/8 62.5 40 12.5 5.5 12.5 M8×1.25×40 Hexagon bolts
Φ50 159.9 140.9 78.6 59.6 22 10.8 PT1/4 94 60 20 8 32 M10×1.5×50 Hexagon bolts
Φ63 162.8 143.8 82.5 58.6 22 11 PT1/8 94 60 20 8 32 M10×1.5×50 Hexagon bolts

Bore Size(mm) N N1 O P Q R S T U V ZE
Φ20 5 12 24 34 - HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side) M8x1.25 15.9 8 19 12
Φ25 5 12 28 40 - HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) M8x1.25 15.9 10 24 12
Φ32 6.5 14 34 44 50 HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) M10x1.5 19 10 30 16
Φ40 6.5 14 40 52 58 HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side) M10x1.5 19 12 30 16
Φ50 8 18 48 62 71 HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) M12x1.75 25.3 12 39 20
Φ63 8 18 60 75 84.5 HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) M12x1.75 25.3 12 50 20
