Automatic Pneumatic Swing Clamp Magnet Type Rotary Structure Power Saving

Name: Automatic Pneumatic Swing Clamp Magnet Type Rotary Structure Power Saving
Brand: Jaiyan
Price: 1 USD

China Automatic Pneumatic Swing Clamp Magnet Type Rotary Structure Power Saving wholesale

Brand Name : Jaiyan

Model Number : HFR

Certification : ISO9001:2008

Place of Origin : Dongguan China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,PayPal

Supply Ability : 1000 sets per week

Delivery Time : 7 days

Packaging Details : poly bag and carton box

Type : Standard

Structure : Rotary Cylinder

Power : Pneumatic

Body Material : Aluminum

Maximum Stroke : 17mm

Shaft Diameter : 20~63mm

Pressure range : 100~700kpa

Rotation stroke : 9/11/13mm

Rotation angle : 90°±2°

Contact Now

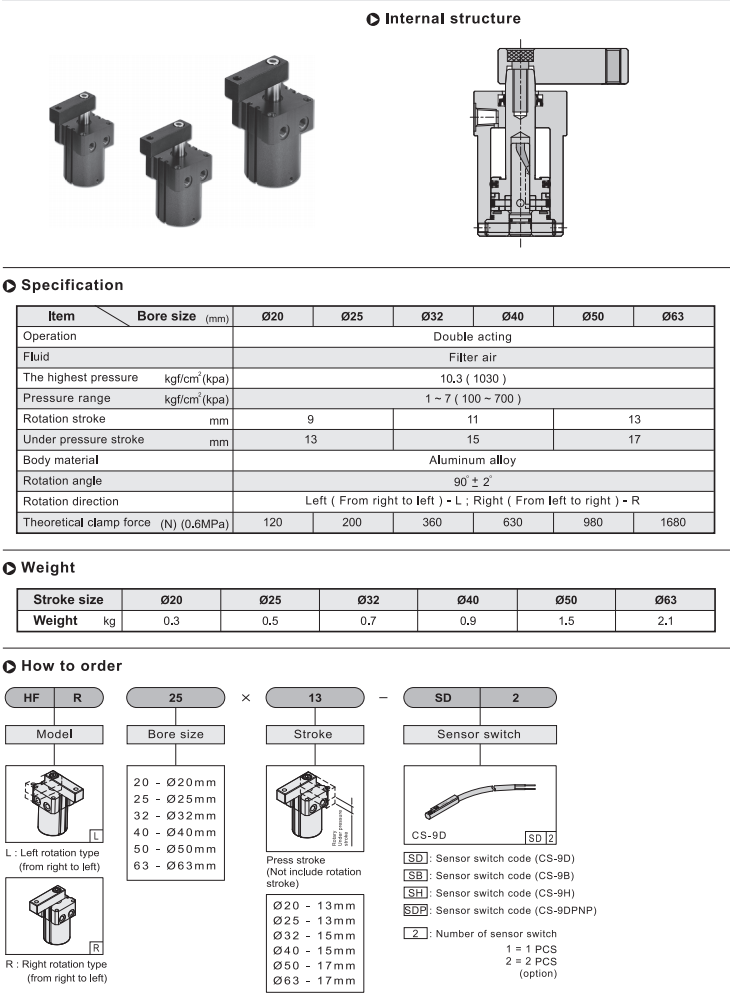

Magnet Type Pneumatic Rotary Clamping Cylinder Automatic Productions Fixture

Features:

1.Optimized design, compact structure, light weight, long life and high clamping force make it a perfect fixture.
2.This product can be equipped with magnetic sensors
3.The top and bottom and side mounting can be selected according to customer's requirements.
4.When the length of the clamping arm needs to be increased , please do not exceed 1.5 times the original length.
